 High Temperature Filter Housings

  • 10" & 20" Housings

  • 180 F Max. Temperature

  • 100 PSI

  • 3/4" Threaded inlet & outlets

  • Bracket required for copper or PVC pipe



Upgrade to Industrial Stainless Steel Housings rated up to 250 and 250 psi     Click Here

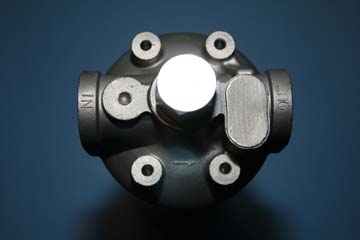

SSHTH10 - ALL 304  STAINLESS STEEL

  3/4 " THREADED INLET /OUTLET

Bio Diesel Filters for the SSHTH10:  PRO2-9, Resin bonded, unaffected by diesel fuel and oil.  Two (2) micron filtration to protect fuel injectors.

  Long life, 2 micron diesel fuel / oil filter element  for the SSHTH10  $ 19.75 each



Order Housings by clicking on button

  10" Red Housing

  20" Red Housing

  Bracket for Red Housing, L shaped with predrilled holes and screws.

  Order extra gasket, Viton*  for HTH10, HTH20 style housings  $6.95 each.  NOT for stainless steel housing. These are flat gaskets made specifically for the HTH10 and HTH20. These flat gaskets will not work in any other filter housing on this web site. This was a design change made by us to improve leak resistance in hot water.

  Wrench is used as handle to loosen filter housing when changing filter.



SSHTH10 Industrial Stainless Steel High Temp.

SSHTH20 - Same construction as the SSHTH10 except has longer body.  Uses a 20 inch filter element; HTF520 and HTF2020.

  10" stainless steel

  20" stainless steel

  Bracket for SSHTH10, SSHTH20, Stainless steel housings

   Buna gasket set for SSHTH10, SSHTH20  $8.95 per set.  Set includes nut gasket and shell gasket.

  Viton Gasket set for SSHTH10, SSHTH20 $ 14.95 per set.  More durable than Buna, better for chemical resistance.


Order High Temp. Sediment Elements:

       5 micron, 10 inch high temp. element for the HTH10 or SSHTH10 housing. High temp. media, High Temp Poly support core.

    20 micron, 10 inch high temp. element for the HTH10 or SSHTH10 housing.  High temp. media, High Temp Poly support core.

    5 micron, 20 inch high temp. element for the HTH20 or SSHTH20 filter housing.  High temp. media, High Temp Poly support core.

20 micron, 20 inch high temp. element for the HTH20 or SSHTH20 filter housing.  High temp. media, High Temp Poly core.

Food Grade High Temp Filters  (Hot  Vegetable and Animal Oil and other Edible Oils)

     Food Grade FDA 5 micron, 10 inch high temp. element for the HTH10 or SSHTH10 filter housing.  High temp. FDA media, stainless steel core.
    Food Grade FDA 5 micron, 20 inch high temp. element for the HTH20 or SSHTH20 filter housing.  High temp. FDA media, stainless steel core.
    Food Grade FDA 20 micron, 10 inch high temp. element for the HTH10 or SSHTH10 filter housing.  High temp. FDA media, stainless steel core.
  Food Grade FDA 20 micron, 20 inch high temp. element for the HTH20 or SSHTH20 filter housing.  High temp. FDA media, stainless steel core.



Call sales @ 1-800-884-0560 for quotes on other sediment filters for both single and double length housings.

We have a wide range of micron ratings and filter medias for chemical compatibility.
